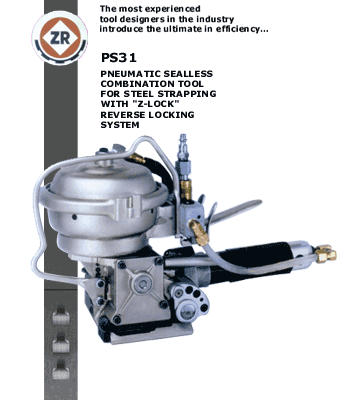

These
pneumatic tools are designed for the rapid and reliable strapping
of concrete products, crates, lumber, metal products, palletized
products as well as other products to be unitized with steel
strapping.
These tools come equipped with our exclusive "Z-Lock" reverse
locking system designed for the most demanding applications.
It provides added protection against the loosening or unlocking
of the sealless connection in either direction.
The PS31 series tools are specifically designed for use with
high tensile steel strapping (of up to 156,000 psi
/ 1100 N/mm2) and may also be used with regular
duty strapping for much improved durability. For use with
strapping sizes from 3/4" x .025" (19 mm x 0.635 mm) to 3/4"
x .031" (19 mm x 0.80 mm).
Two buttons control the entire operation of tensioning, sealing
and cutting.
The
design of the sealing mechanism assembly allows easy access
for strapping.
The proven patented design provides much improved seal joint
efficiency compared with other tools in its category.
With the fewest individual parts and components, less maintenance
and repair is required compared with other tools in its category.
Replacement of parts is very simple, and takes only a few
minutes to replace the feedwheel, gripper, knife, punch or
die. Manufactured from only the most durable materials, this
tool provides unsurpassed reliability.
TECHNICAL
SPECIFICATIONS
| Model
Number |
Strap
Width |
Strap
Thickness |
| PS31-1 |
3/4"
(19 mm) |
.025"
- .031" (0.635 mm - 0.80 mm) |
| Weight |
26.2
lbs (11.3 kg) |
| Base
Length |
4.5"
(115 mm) |
| Base
Width |
3.0" (75 mm) |
| Height |
9.8"
(250 mm) |
Tension
up to 2100 lbs. (9500 N)
Working air pressure 65 psi (4.5 bar) |
|
