These
pneumatic tools are designed for the rapid and reliable strapping
of concrete products, crates, lumber, metal products, palletized
products as well as other products to be unitized with steel
strapping.

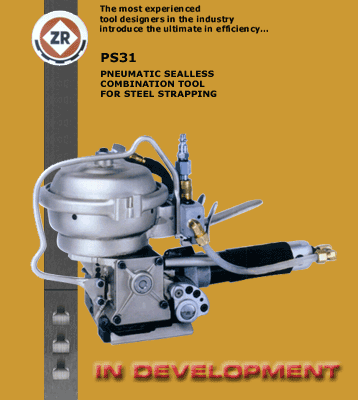

The
PS31 series tools are the latest in innovation, specifically
designed for use with high tensile steel strapping
(of up to 156,000 psi / 1100 N/mm2) and may also
be used with regular duty strapping for much improved durability.
For use with strapping sizes from 3/4" x .025" (19 mm x 0.635
mm) to 3/4" x .031" (19 mm x 0.80 mm).
Two
buttons control the entire operation of tensioning, sealing
and cutting.
The
design of the sealing mechanism assembly allows easy access
for strapping.
Lightweight
and easily maneuverable compared with other tools in its category.
The
proven patented design provides much improved seal joint efficiency
compared with other tools in its category.
With
the fewest individual parts and components, less maintenance
and repair is required compared with other tools in its category.
Replacement
of parts is very simple, and it takes only a few minutes to
replace the feedwheel, gripper, knife, punch or die.
Manufactured
from only the most durable materials, this tool provides unsurpassed
reliability.
We
invite you to test and compare...price, value, quality and
durability.
We are sure you will choose the PS31.
TECHNICAL
SPECIFICATIONS
Model
Number |
Strap
Width |
Strap
Thickness |
PS31-1 |
3/4"
(19 mm) |
.025"
- .031" (0.635 mm - 0.80 mm) |
Weight |
26.2
lbs (11.3 kg) |
Base
Length |
4.5"
(115 mm) |
Base
Width |
3.0" (75 mm) |
Height |
9.8"
(250 mm) |
Tension
up to 2100 lbs. (9500 N)
Working air pressure 65 psi (4.5 bar) |
|
